Organize and Rename PDF Files Based on Content with OCR

Step 1: Open Your PDF Files

Begin by adding your PDF files or images. You can select multiple files at once to process large batches efficiently, or add files later. Each file will be displayed, ready for you to define the areas from which you want to extract data.

Click on a page to start defining OCR zones.

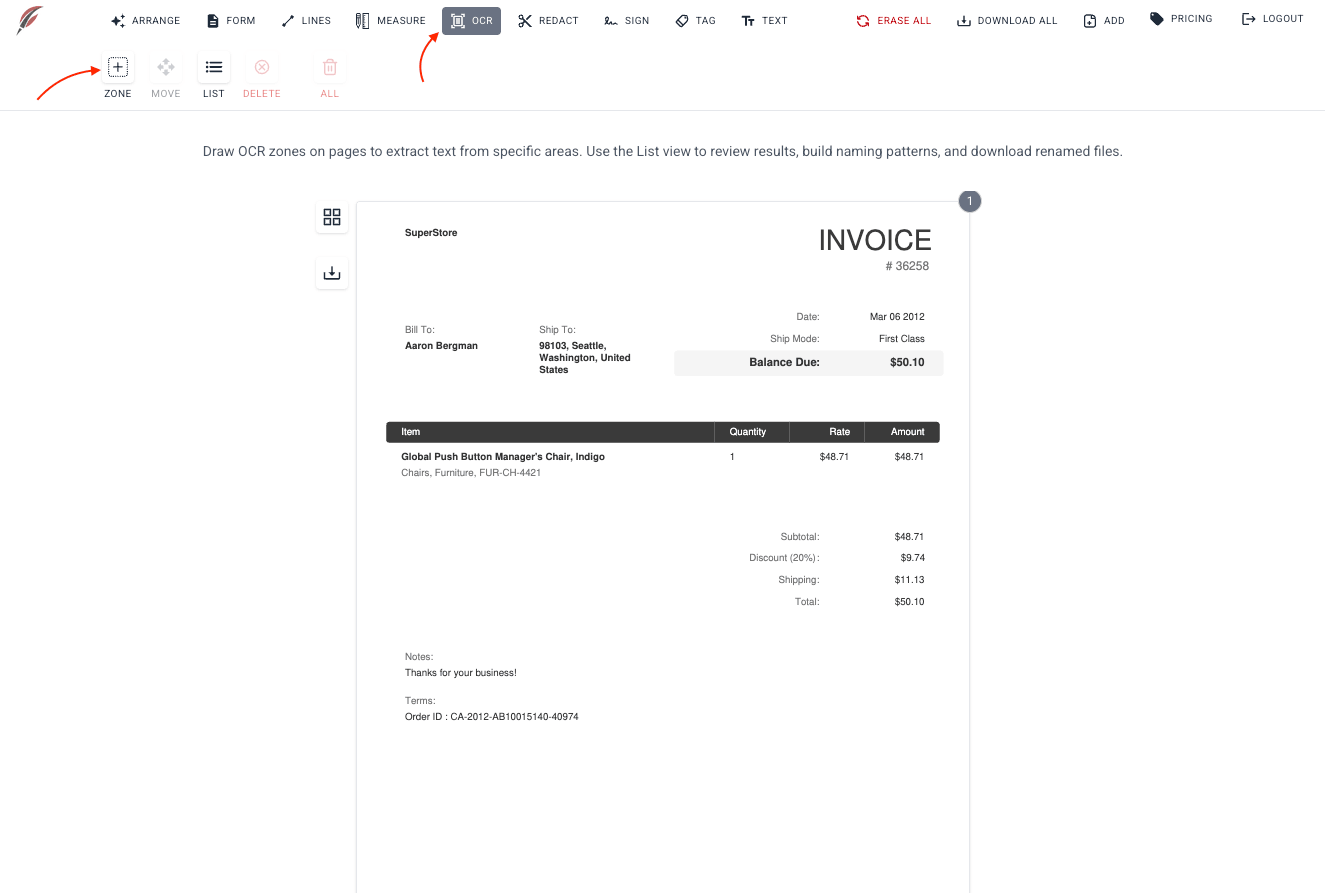

Step 2: Define OCR Zones

Once your PDF files are loaded, the next step is to define the OCR zones. These zones are areas on each page from which the tool will extract text. You can add, delete and move the selection boxes over the content you want to capture.

This is particularly useful for extracting consistent data like invoice numbers, dates, or names, which appear in predictable locations on multiple pages.

Define zones for each page individually, or clone already defined zones to multiple pages (see next step).

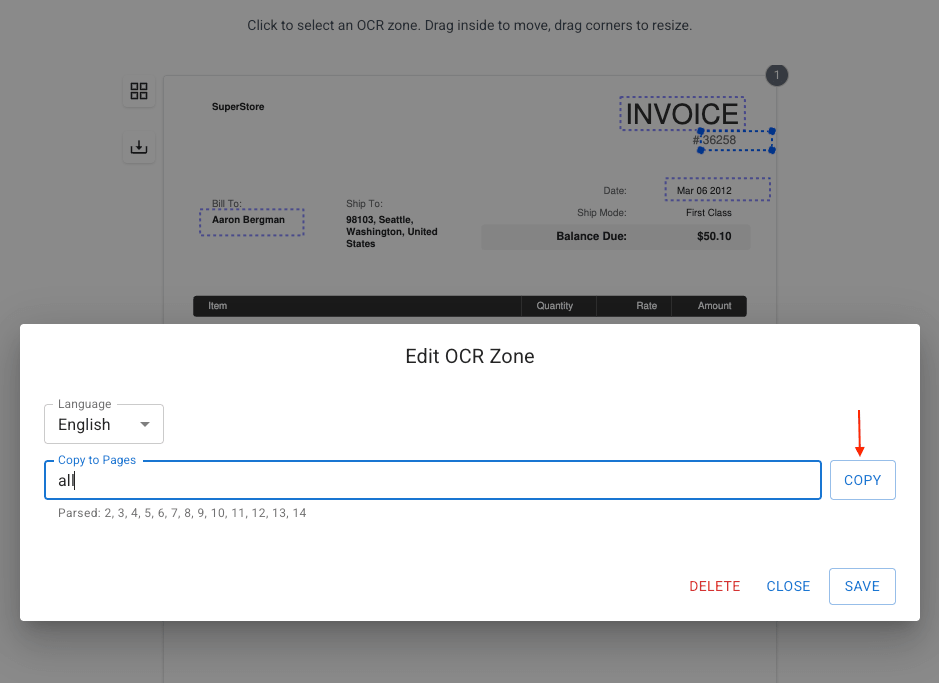

Step 3: Copy Zones Across Pages

To save time, our tool allows you to copy OCR zones from one page to another. If your document has a consistent layout, you can apply the same zones across multiple pages in a few clicks, ensuring that the right content is captured from every page.

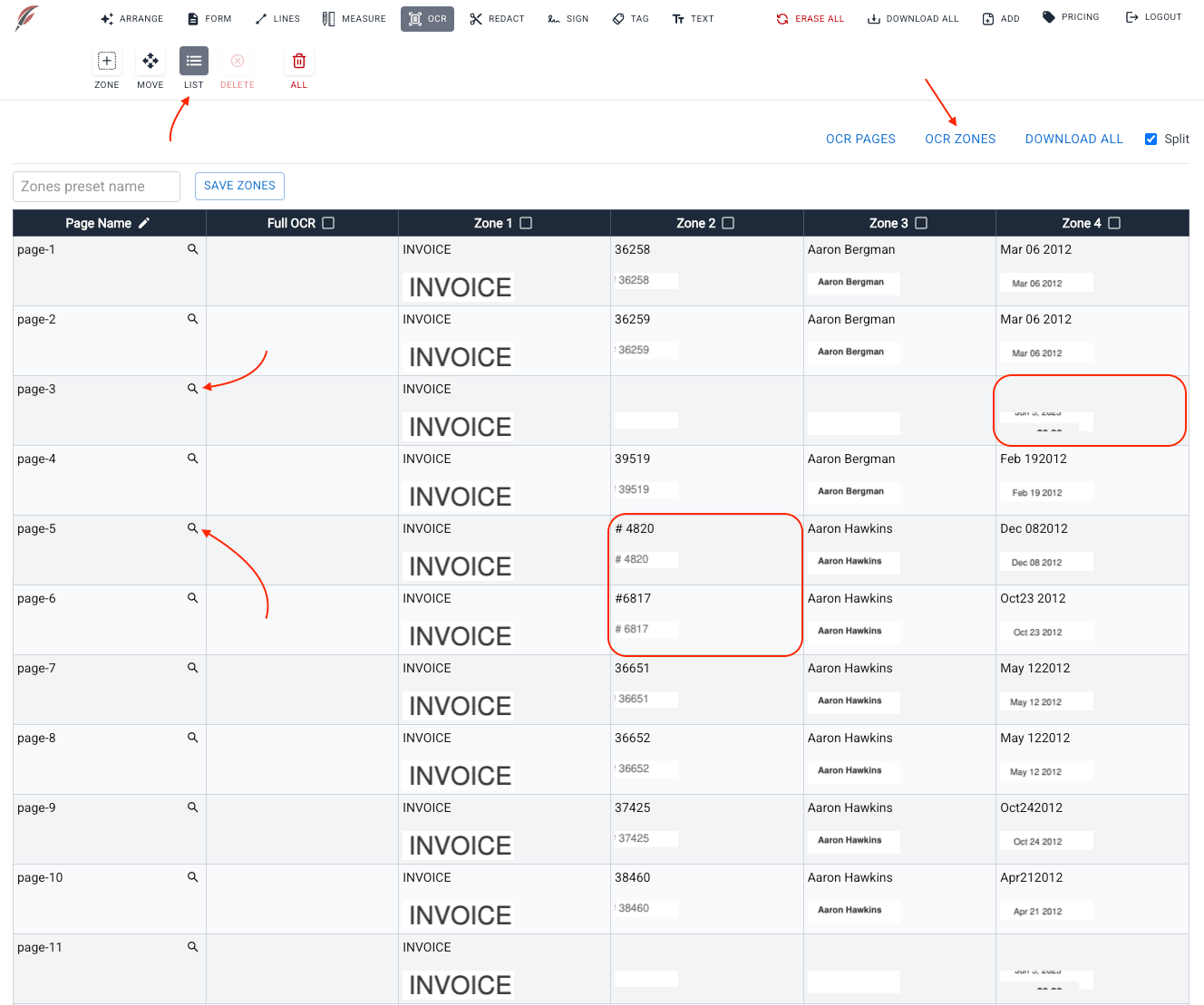

Step 4: OCR the Zones

Now it’s time to extract the data from the document. Close the selected page and type “ocr all zones” in the text prompt. You can also define what pages and zones to OCR. For example, you can type “ocr 1-10 zones 1 2”. Press Enter or click Execute to start.

Depending on the number of pages and zones It may take some time to complete the process.

Once the process is complete, click the OCR icon to move to the fine tuning (next step).

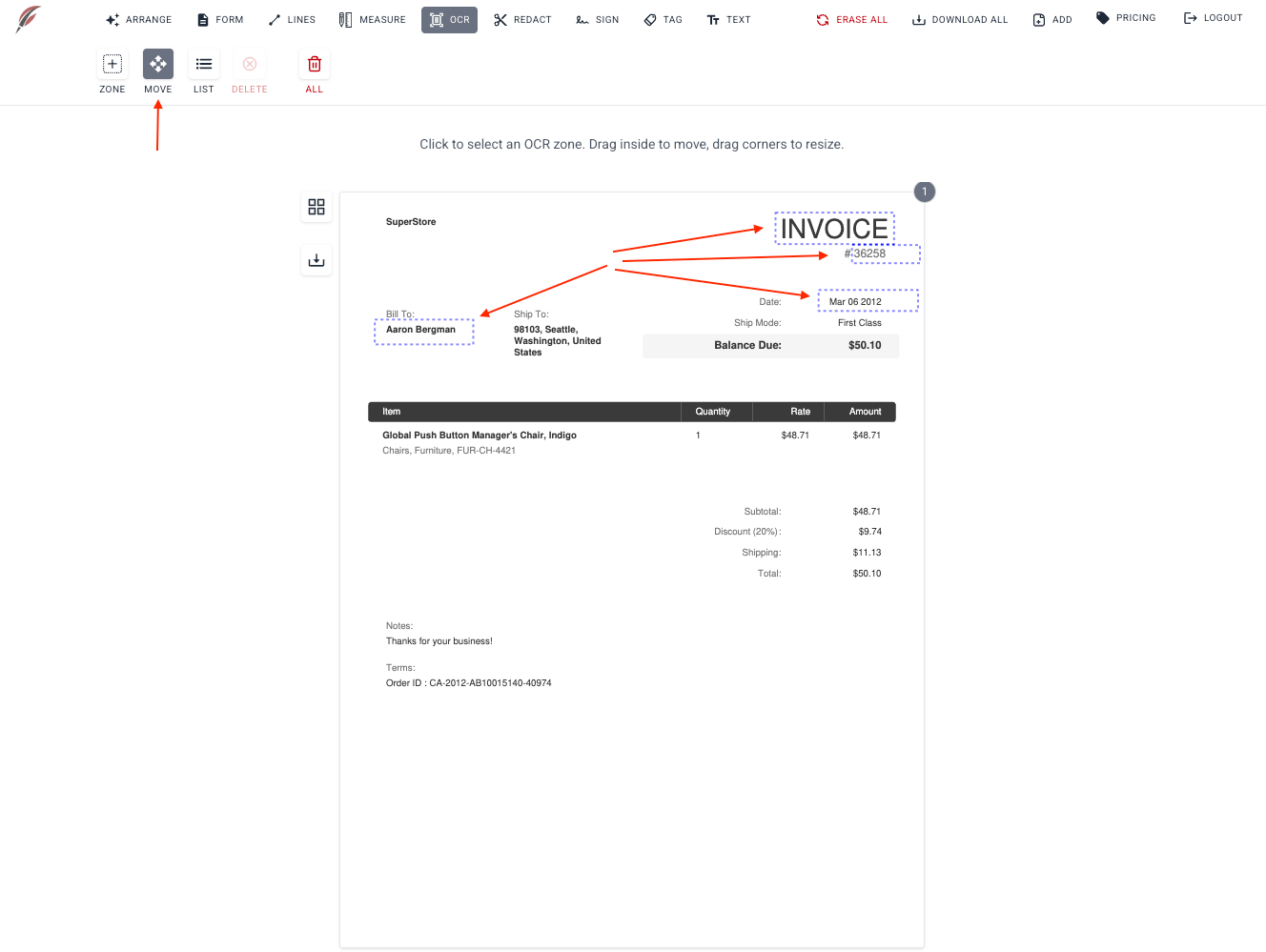

Step 5: Adjust the Zones

It may be necessary to adjust the zones and re-run OCR process. To move the zones click on the magnifying glass icon, fix the zones position and run OCR again.

You can use the same text prompt, or just click the OCR ZONES button.

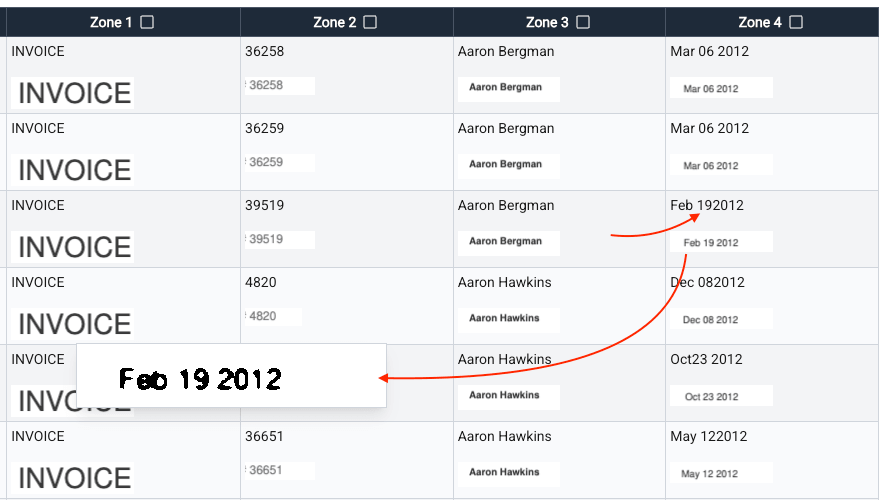

Step 6: Fine-Tune the Extracted Content

Once the tool performs OCR and extracts text, you have the option to fine-tune the results manually. You can correct any inaccuracies in the OCRed content directly within the interface. This ensures that the text used for renaming and organizing your files is clean and accurate.

Click on the text to edit. Move mouse over the image left and right to adjust visibility.

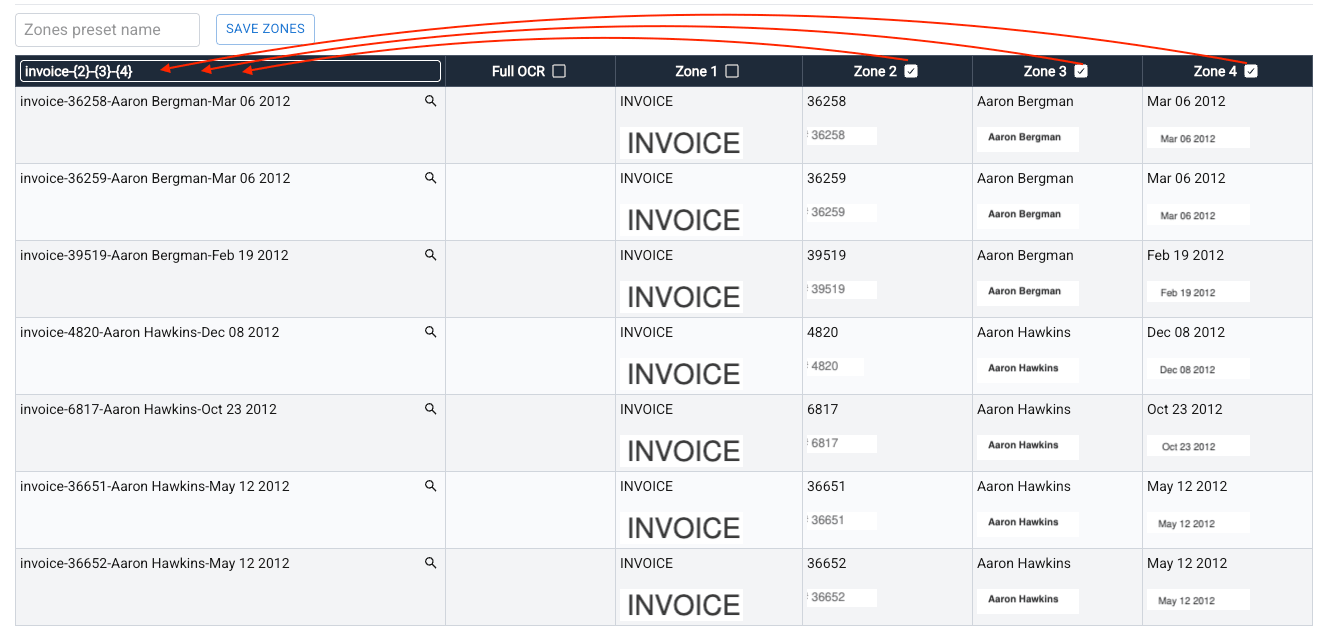

Step 7: Define the Naming Pattern

With the extracted content refined, you can now create a naming pattern for your files. This could include a combination of OCR-extracted data (such as invoice numbers, client names, or dates) and custom text. The tool lets you define complex patterns based on your specific needs, ensuring that your files are named in a way that makes sense for your workflow.

Click on the Pencil icon in the Page Name column and define the pattern manually or by clicking the checkboxes in needed Zone columns.

In this example, we defined the pattern as
invoices/{3|”unknown”}/{4}/{2|N}
which means: create the “invoices” directory, then client name directory (zone 3) or “unknown” if the document does not contain the name, then date directory (zone 4) and, finally, give each saved PDF name equal to order number (zone 4). If zone 4 text is empty, use page number (N).

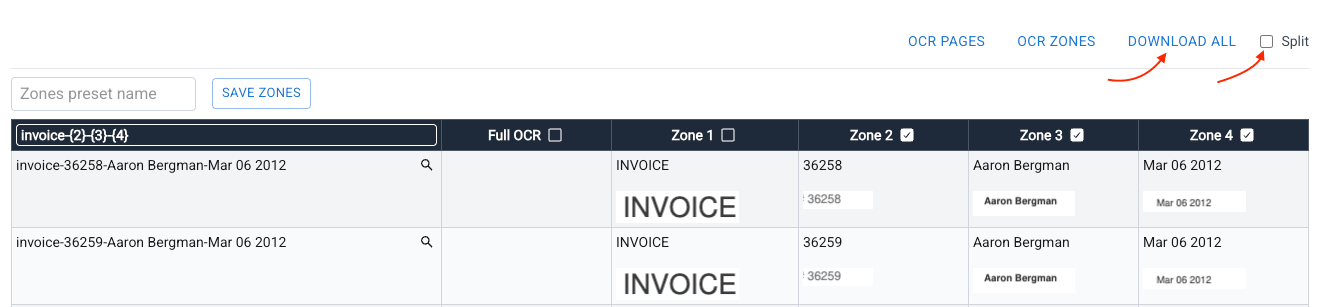

Step 8: Save the PDF files

After defining your naming pattern, click “DOWNLOAD ALL” or enter “split” in the text prompt and Execute. The tool will automatically rename the files and organize them into directories based on the extracted content. You can then download everything as a zip archive, with your documents neatly structured and ready to go.

Note: there is a difference between using the command prompt and the DOWNLOAD ALL button. The command prompt will always save all pages in separate files. However, DOWNLOAD ALL considers the “SPLIT” checkbox setting. If “SPLIT” is not checked, DOWNLOAD ALL will attempt to combine pages from the original files and use OCR content from the first page of each file in the file name pattern. This feature can be helpful for multi-page documents, such as invoices.
